GraphiteVPX/GbE – Managed Ethernet Switch

Highlights:

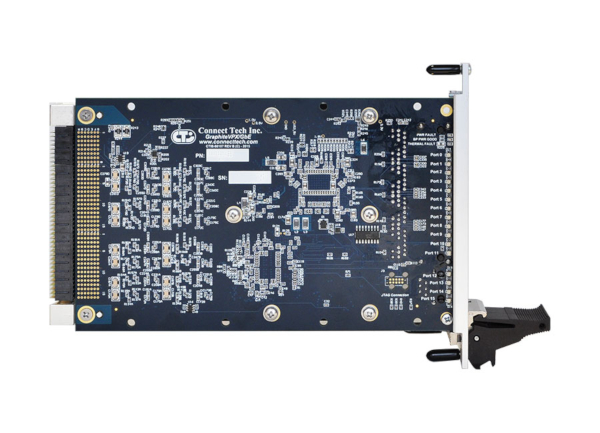

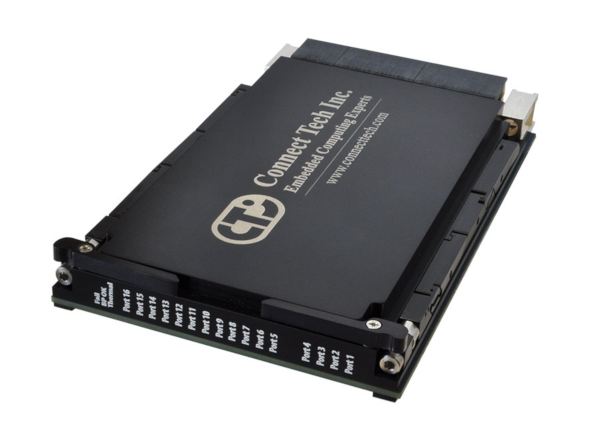

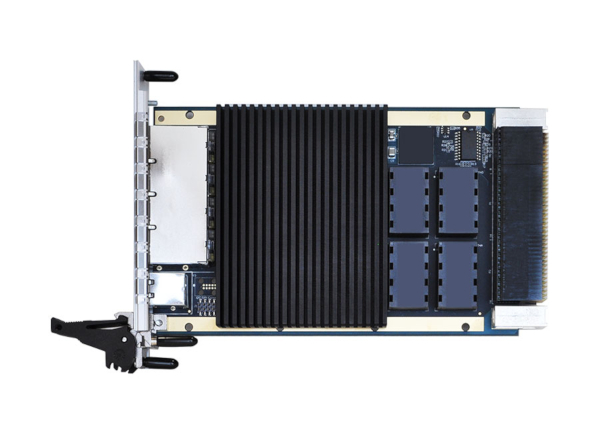

Conduction cooled or Air cooled Heatsink option
20 x GbE (10/100/1000 Ethernet) Ports – 16 to VPX backplane, 4 to front panel IO
Web GUI or CLI Management
Carrier Grade Ethernet Switching

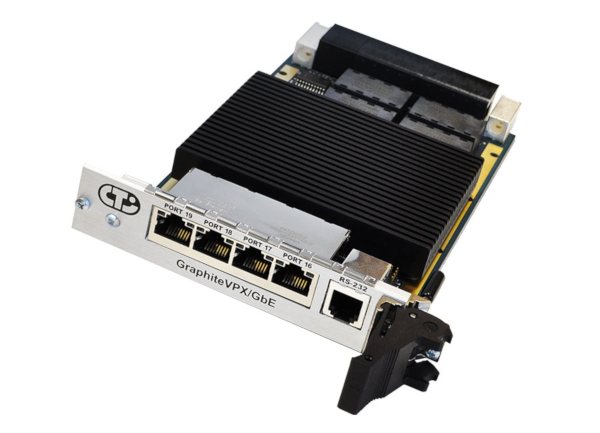

Available with RJ-45 Front panel for easy interfacing
Supports 3U OpenVPX profile: MOD3-SWH-16T-16.4.7-1
Extended Temperature Range -40°C to +85°C

More information:

Connect Tech’s GraphiteVPX/GbE Managed Ethernet Switch provides Carrier Grade Ethernet switching capabilities in a small 3U embedded form factor.

Excellent for demanding applications with rugged environments and extreme temperatures, the GraphiteVPX/GbE Managed Ethernet Switch is also a highly reliable way to communicate with 10/100/1000 Base-T devices in an embedded system. Powered by the latest generation Carrier Ethernet Switch engine, the Vitesse 7429 features an embedded MIPS 32-bit CPU, 1Gb external memory and DMA-based frame extraction and insertion support timing over packet, Ethernet OAM, and performance monitoring.

Available in models with VPX backplane and/or 4 port RJ45 on the front panel connectors, making this embedded Ethernet switch ideal for any type of environment.

Description

Ethernet Switch Engine	Microchip VSC7429 Carrier Grade Ethernet Switch Chipset (VPG201)
Memory	128Mb Flash, 1GB RAM
Ports	20x GbE (10/100/1000 Ethernet) Ports
Connectors	VPX backplane and/or 4 port RJ45 on front panel
Layer 2 Switching	802.1Q VLAN switch with 8K MACs and 4K VLANs, Hardware and software-based learning, Independent and shared VLAN learning (IVL, SVL), IPv4/IPv6 multicast, Jumbo frame support, Link aggregation (IEEE 802.3ad), Policing with storm control and MC/BC protection, Push/pop up to two VLAN tags, RSTP and MSTP support
Management Access	RS-232 Serial Interface (CLI), Software API, Web Interface
LEDs	2 LEDs per port (available on RJ-45 and through external connector), Power Rail LEDs, Status LEDs
Power Consumption	23W Max
Dimensions	1” Pitch VITA 65 Compliant 3U VPX form factor. L x W = 160mm x 100mm
Operating Temperature	-40°C to +85°C (-40°F to +185°F), (chipset rated to +125°C junction temperature)

Ordering information:

VPG201 GraphiteVPX/GbE – Managed Ethernet Switch – Air Cooled 20-port GbE Switch
VPG202 GraphiteVPX/GbE – Managed Ethernet Switch – Conduction Cooled 16-port GbE Switch

Cables/Accessories
RTG002 3U extended RTM, with 16 RJ45 channels
