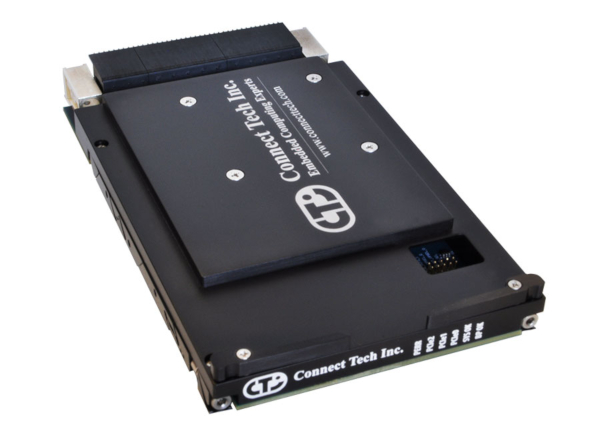

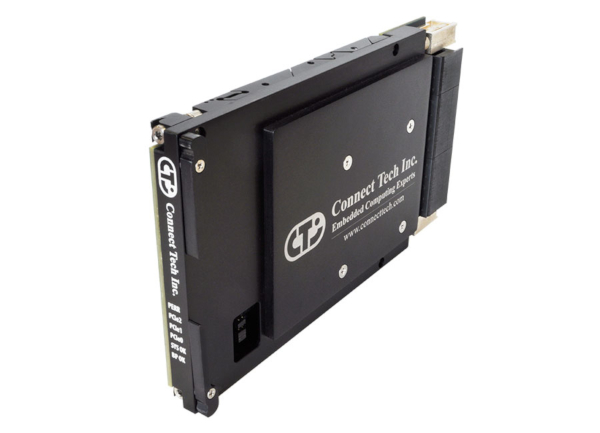

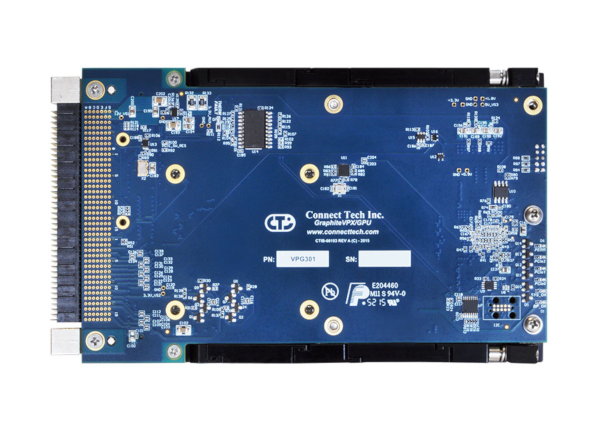

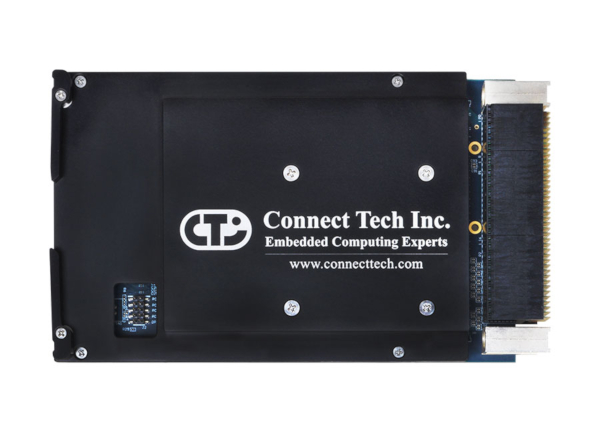

Connect Tech’s GraphiteVPX/GPU is a VITA 65 compliant 3U peripheral card that brings the NVIDIA® GeForce GTX 950M to the highly rugged embedded VPX marketplace. The GraphiteVPX/GPU provides up to four DisplayPort outputs or 2 DVI outputs.
The power of the GeForce GTX 950M delivers unsurpassed graphics, video, and GPU computing performance, with access to 640 NVIDIA CUDA™ cores. It is an ideal solution for performance driven systems such as medical imaging, defense, and military/aerospace applications.
The onboard PCIe Gen 3.0 switch allows for multiple dataplane options, a direct x8 interface, or the option of splitting the bus into two x4 interfaces allowing for an additional downstream port. A non-transparent (NT) option is also available to allow multiple hosts to share the GPU resources through the same backplane.
| Power Requirements | 12V (VS1), 3.3V (VS2), and 5V (VS3) |
|---|---|
| Compatibility | 3U OpenVPX (Vita 64, VITA 48, VITA 65-compliant) |
| Maximum Power | 65W |
| PCI Express | 3.0 (x8 or two x4) Dataplane only |
| LEDs | PCIe Link speeds, Power up status |
| GPU | NVIDIA® GeForce 950M with 2GB GDDR5 |
| Operating System | Linux, Windows 7, 8, 8.1, 10 |
VPG301 Graphite VPX/GPU
Cables/Accessories
TG003 RTM for Development on the VPG301
