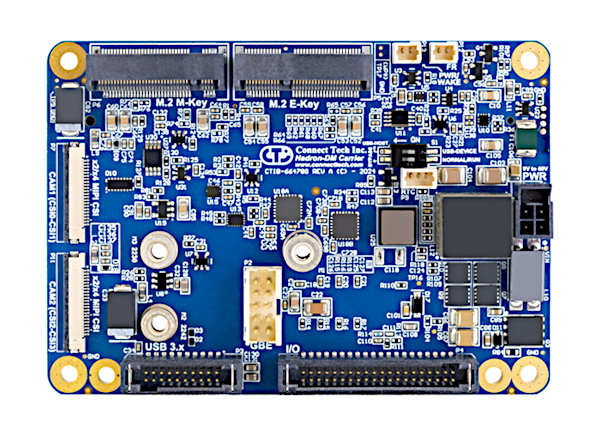

Hadron-DM Carrier for NVIDIA Jetson Orin NX

Highlights:

  • Compatible with Jetson Orin™ NX, Jetson Orin™ Nano
  • Dual 4-Lane MIPI CSI-2 22-Pin Connectors
  • 2x USB3.1, 1x GbE, 1x 2242 NVMe, M.2 (M-Key)
  • 1x M.2 E-Key for WiFi/BT
  • Wide Power Input:+9V to +60V DC

More Information

The Hadron-DM Carrier Board for Jetson Orin™ NX is an ultra small, rugged and feature rich carrier for AI Computing at the Edge.

Just slightly larger than the Jetson™ SODIMM module, Hadron is ideal for vision applications, inference, and unmanned payloads. Hadron-DM features Dual MIPI CSI-2 connectors for greater versatility.

Since the Hadron-DM carrier board is compatible with the Jetson Orin™ NX, and Jetson Orin™ Nano modules, users can transition between modules depending on their AI processing requirements.

Description

Specifications

Ethernet 1x 1000BASE-T Ports (Connector: Positive Locking Pin Headers)
USB 2 x USB 3.1 (Gen 1)
1x USB 2.0 Programming Port
(HD pin headers)
MIPI Cameras 2x 4-lane MIPI CSI-2
– 22-pin FPC Connector
Misc Interfaces 1x 3.3VTTL UART (CONSOLE)
2x RS-232 Serial Ports
4x GPIO (I/O Header), 2x PWM Capable
1x 3.3V I2C
1x 3.3V SPI
Power Output 3.3V, 5V (Max 500mA Each)
Storage 1x 2242/2230 NVMe (M-Key)
Display Output None (Headless Operation only)
FAN 1x 4-pin Fan Connector (5V, 1×4 Picoblade)
Expansion 1x M.2 E-Key for WiFi/BT
Power Input Wide Power Input: +9V to +60V DC (+12V to +48V DC Nom.)
Power – RTC Battery 3-Pin RTC Battery Connector
Operating Temperature -25°C to +85°C (-13°F x 185°F)
Dimensions 82.6mm x 58.8mm (3.25” x 2.31”)
Weight 56g
Warranty and Support 1 Year Warranty and Free Support

Ordering Information

NGX024   Hadron-DM Carrier for NVIDIA® Jetson Orin™ NX

Cables/Accessories
XBG023   USB 3.0 Breakout for Hadron Carrier
CBG706   Molex 4-pin Nano-Fit 2×2
CBG117   10-pin MiniTek w/Latch, RJ-45 Panel Mount
CBG136   Molex 3 position 1.25mm PicoBlade Connector
CBG615   20-pin Tiger-Eye to 2x USB 2.0 Type-A Female
CBG629   40-pin Tiger-Eye to Unterminated FlyingLeads
CBG686   20-pin Tiger-Eye to 2x USB 3.0 Type-A Female (200mm)
