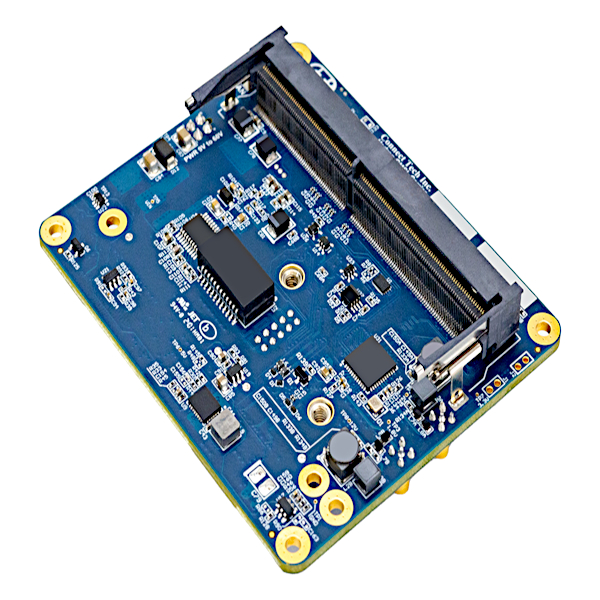

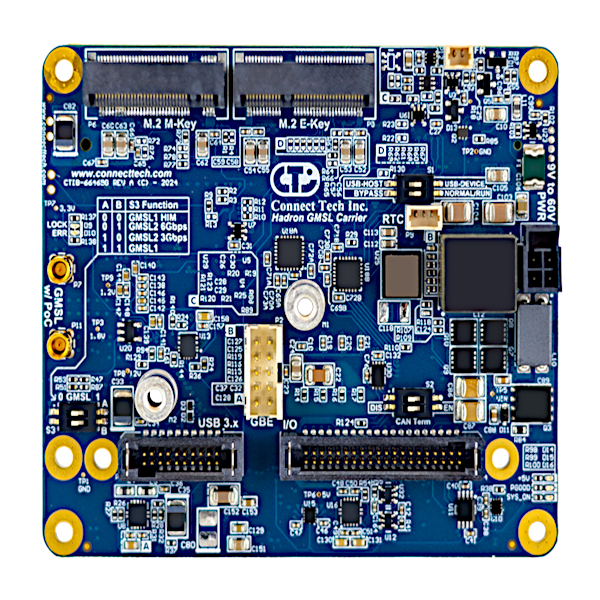

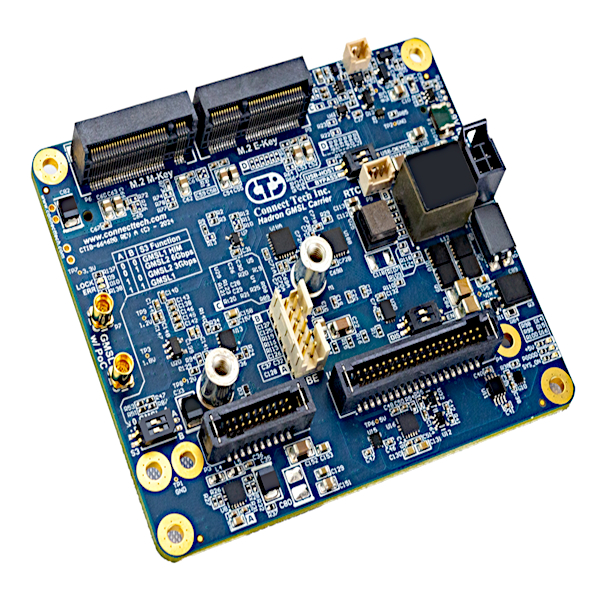

Hadron GMSL Carrier for NVIDIA Jetson Orin NX

Highlights:

  • Compatible with Jetson Orin™ NX and Orin™ Nano
  • Tiny footprint: 82.7mm x 68.8mm (3.25” x 2.71”)
  • 2x USB3.1, 1x GbE, 2x GMSL Coax Ports
  • 1x NVMe M-Key, 1x M.2 E-Key
  • Wide Power Input: +9V to +60V DC

More Information

The Hadron GMSL Carrier Board for Orin™ NX and Orin™ Nano stands out as an ultra-compact, robust, and feature-rich solution, boasting dual GMSL2 camera inputs. It ensures high-speed, dependable data communication, crucial for autonomous applications. Just slightly larger than the Jetson™ SODIMM module, Hadron is perfect for GMSL vision applications, inference processing, and unmanned payloads, making it an ideal choice for AI computing at the Edge. Hadron’s design accepts a wide input voltage range, provides a comprehensive I/O set, with locking I/O connectors optimized for rugged environments.

Description

Specifications

Ethernet 1x 1000BASE-T
with Rugged Positive Locking Pin Headers
USB 2 x USB 3.2 Gen 1×1 (5 Gbps)
with Rugged Positive Locking Pin Headers
(High-Speed Cabling Option Available)
GMSL Camera Inputs 2x GMSL2 Camera inputs w/ PoC
with MMCX Coax Connectors
(MIPI CSI-2 Access to Jetson)
Misc Interfaces 1x CAN 2.0b
1x 3.3VTTL UART (CONSOLE)
2x RS-232 Serial Ports
4x PWM capable GPIO
1x 3.3V I2C
Power Output 3.3V, 5V (Max 500mA Each)
Storage 1x 2242 NVMe (M-Key)
FAN 5V Fan Connector
Power Input Wide Power Input: +9V to +60V DC (+12V to +48V DC Nom.)
Power – RTC Battery 3-Pin RTC Battery Connector
Operating Temperature -25°C to +85°C (-13°F x 185°F)
Weight 58g
Warranty and Support 1 Year Warranty and Free Support

Ordering Information

NGX018   Hadron Carrier for NVIDIA® Jetson Orin™ Nano

Cables/Accessories
CBG706   Molex Nano-Fit 2×2
CBG117    10-Pin MiniTek w/Latch, RJ45 Panel Mount
CBG136   Molex 3-position PicoBlade Connector to Coin Cell Battery
CBG705   Molex 2-Position PicoBlade Connector to Panel Mount Pushbutton
CBG615   20 Pin Tiger-Eye to 2x USB 2.0 Type-A Female
CBG686   20-pin Tiger-Eye to 2x USB 3.0 Type-A Female (200mm)
CBG629   I/O Cable 40-Pin Tiger-Eye to Unterminated Flying Leads
CBG619   Samtec MMCX Plug to FAKRA Plug Z-Type IP67
