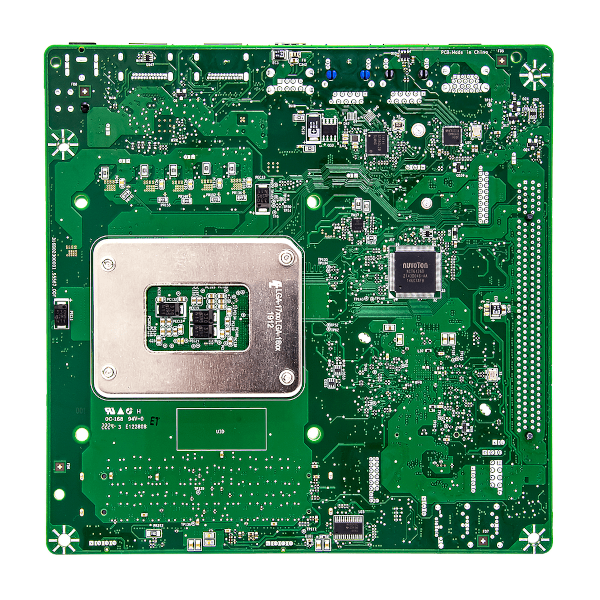

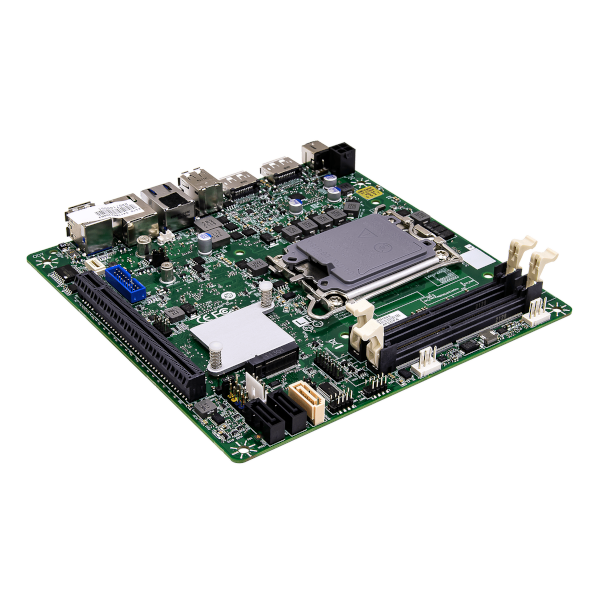

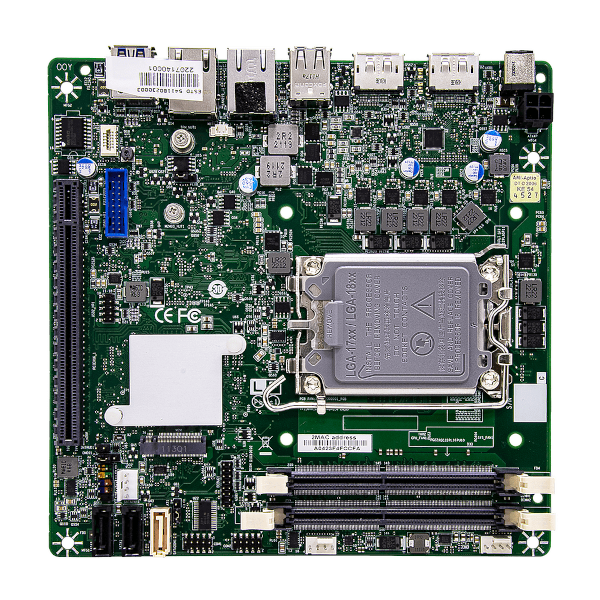

INS8367A

Mini-ITX Form Factor Intel® 13/12th Gen. Core™ i9/i7/i5/i3 processors

Highlights:

  • Support Intel® 13/12th Core™ i9/i7/i5/i3 Alder Lake-S LGA1700 35W/65W ocket Processor
  • Intel® Q670/H610 Chipset
  • 2 x DDR4 SO-DIMM up to 64GB
  • 2 x USB3.1 ; 2 x USB3.0 ; 4 x USB2.0
  • Support dual display for 2 x DP
  • 1 x M.2 M-Key 2280 ; 1 x PCIe 4.0 x16
  • 2 x SATAIII
  • 1 x 2.5GbE +1 x GbE LAN
  • DC-IN 12V
  • Operating Temperature : ET : -20°C ~ 70°C ; UT : -40°C ~ 85°C

More information:

INS8367A is a powerful rugged Mini-ITX solution driven by 13/12th Gen Intel® Alder Lake-S LGA1700 Socket Processor The larger LGA 1700 socket takes over LGA 1200 socket. The new design is divided into performance cores, the so-called P- cores, and energy efficient cores, the E-cores​​​​​, it allows handling 24 threads. The CPU is single and scalable SoC architecture on Intel i9 process, and 19% performance lift with new performance-core.

It is Compatible with 1 x M.2 2280M-Key (PCIe3.0 X4, SATAIII), 1 x PCIe 4.0 X16 slot.  Dual independent displays can be driven up to 4K resolutions via DisplayPort. Besides, INS8367A got rich I/O ports, includes 2 x USB3.1, 2 x USB3.0, 4 x USB2.0, 2 x COM Port(1 x support RS-232/422/485) and 2 x LAN(1 x 2.5GbE), complete and flexible expansion possibility for easy system integration.

An extended operating temperature of -40°C ~ 85°C, to ensure ultimate durability, utmost resistance to shock & vibration. INS8367A is truly a rugged Mini-ITX board ideal for Energy/ Utility/ High performance application needs. With various extensive ability and strong computing power, which can be utilized in applications such as large size KIOSK, facial identification, and gaming industry.

Categories: ,

Description

Specifications:

System
CPU 13/12th Gen Intel® Alder Lake LGA1700 Socket Processor / Core i9/i7/i5/i3 Processor,

TDP 35/65W
Memory type DDR4 3200 MHz / 2 x 262-pin SO-DIMM / Max. 64GB (Non-ECC) Vertical
Chipset Intel® H610/Q670
I/O Chipset Nuvoton NCT6126D
TPM TPM Header
H / W Monitor Temperature Monitor, Voltage Monitor, Fan Monitor
Watchdog 1-255 sec. or 1-255 min. software programmable and can be generate system reset
Smart Fan Control CPU FAN / System FAN
BIOS AMI BIOS
Expansion Slot
M.2 1 x M.2 2280M-Key (PCIe3.0 X4, SATAIII)
PCIe Slot 1 x PCIe 4.0 X16 slot
Display
Chipset Intel® UHD Graphics 770
Display Port Up to 4K (4096 x 2304) @60 Hz
2nd Display Port Up to 4K (4096 x 2304) @60 Hz
Ethernet
Chipset Intel® I219-LM GbE LAN + Intel® I225V 2.5 GbE LAN
Rear I/O
USB 2 x USB3.1 ; 2 x USB2.0
Display port 2 x DP
LAN 2(1 x GbE ; 1 x 2.5GbE)
Internal I/O
SATAIII 2
SATADOM 1
USB3.0 2
USB2.0 2
Serial 2 (1 x Support RS-232/422/485)
FAN 1 x 4-pin CPU Fan Connector / 1 x 4-pin System Fan Header
Power 1 x 12V DC IN Jack

1 x ATX 4pin (AT/ATX mode by jumper setting)
Others 1 x CMOS Jumper

1 x FIO header

1 x intrusion switch header
Mechanical and Environmental
Form Factor Mini ITX
Power Type 12V DC-IN
Dimension 170mm x 170mm
Operating  Temperature ET : -20°C ~ 70°C

UT : -40°C ~ 85°C
Storage Temperature -40°C ~ 85°C
Relative humidity 10% to 95%, non-condensing
Standard Compliance
Standard Compliance CE/FCC
OS
OS Support Windows® 10 64-bit

Linux(Support by request)
