INS8367B

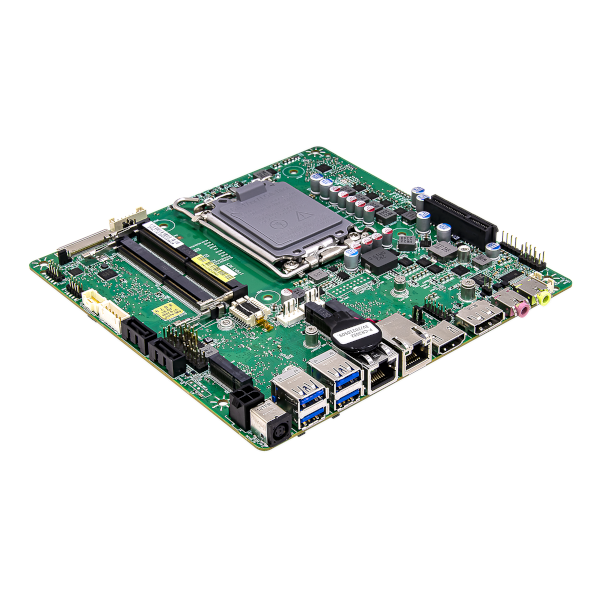

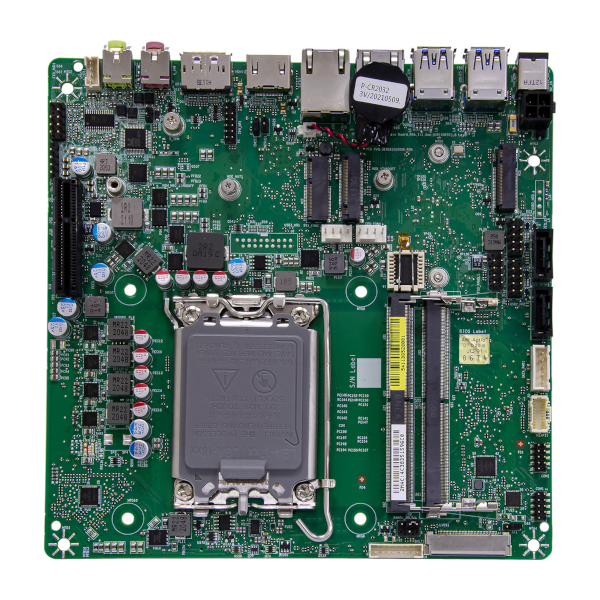

Mini-ITX Form Factor Intel® 12th Gen. Core™ i9/i7/i5/i3 processors

Highlights:

  • Support Intel® 12th Core™ i9/ i7/i5/i3 Alder Lake-S LGA1700 35W/65W Socket Processor
  • Intel® Q670 Chipset
  • 2 x DDR5 SO-DIMM up to 64GB
  • 6 x USB3.1 ; 5 x USB2.0
  • 1 x HDMI ; 1 x DP ; 1 x LVDS(eDP optional)
  • 1 x M.2 M-Key 2242/2280, 1 x M.2 E-Key 2230, 1 x M.2 B-Key 3042, 1 x PCIe 3.0 x4
  • 2 x SATAIII
  • 1 x 2.5GbE +1 x GbE LAN
  • DC-IN 12V
  • Operating Temperature : ET : -20°C ~ 70°C ; UT : -40°C ~ 85°C

More information:

INS8367B is a powerful rugged Mini-ITX solution driven by 12th Gen Intel® Alder Lake-S LGA1700 Socket Processor The larger LGA 1700 socket takes over LGA 1200 socket; the well-known improvements are the DDR5 support. The new design is divided into performance cores, the so-called P- cores, and energy efficient cores, the E-cores​​​​​, it allows handling 24 threads. The CPU is single and scalable SoC architecture on Intel i9 process, and 19% performance lift with new performance-core.

It is Compatible with 1 x M.2 2230 E-Key (PCIe X1 , USB2.0), 1 x M.2 2242/2280(PCIe3.0 X4, SATAIII) , 1 x M.2 3042/3052 B-Key (USB2.0, PCIe3.0 X1, SATAIII).  Dual independent displays can be driven up to 4K resolutions via DisplayPort. Besides, INS8367B got rich I/O ports, includes 6 x USB3.1, 5 x USB2.0, and 2 x LAN(1 x 2.5GbE), complete and flexible expansion possibility for easy system integration.

An extended operating temperature of -40°C ~ 85°C, to ensure ultimate durability, utmost resistance to shock & vibration. INS8367B is truly a rugged Mini-ITX board ideal for Energy/ Utility/ High performance application needs. With various extensive ability and strong computing power, which can be utilized in applications such as large size KIOSK, facial identification, and gaming industry.

Categories: ,

Description

Specifications:

System
CPU 12th Gen Intel® Alder Lake LGA1700 Socket Processor / Core i9/i7/i5/i3 Processor, TDP 35/65W
Memory type DDR5 4800 MHz / 2 x 262-pin SO-DIMM / Max. 64GB (Non-ECC) Horizontal
Chipset Intel® Q670
I/O Chipset Nuvoton NCT6126D
TPM TPM Header
H / W Monitor Temperature Monitor, Voltage Monitor, Fan Monitor
Watchdog 1-255 sec. or 1-255 min. software programmable and can be generate system reset
Smart Fan Control CPU FAN / System FAN
BIOS AMI BIOS
Expansion
M.2 1 x M.2 2230 E-Key (PCIe X1 , USB2.0)

1 x M.2 2242/2280 (PCIe3.0 X4, SATAIII)

1 x M.2 3042/3052 B-Key (USB2.0, PCIe3.0 X1, SATAIII)
PCIe Slot 1 x PCIe 3.0 x 4 slot
Display
Chipset Intel® UHD Graphics 770
HDMI Up to 4K (4096 x 2160) @30 Hz
Display Port Up to 4K (4096 x 2304) @60 Hz
LVDS Up to 1920 x 1200 @60 Hz
Ethernet
Chipset Intel® I219-LM GbE LAN + Intel® I225V 2.5 GbE LAN
Audio
Codec Realtek® ALC888
Rear IO
USB 4 x USB3.1
Display port 1 x DP ; 1 x HDMI
LAN 2(1 x GbE ; 1 x 2.5GbE)
AUDIO 1 x MIC-IN ; 1 x LINE-OUT
Internal I/O
SATAIII 2
USB3.1 2
USB2.0 5
Display I/O 1 x LVDS

1 x Backlight connector
Serial 2 (1 x Support RS-232/422/485)
FAN 1 x 4-pin CPU Fan Connector / 1 x 4-pin System Fan Header
Power 1 x 12V DC IN Jack

1 x ATX 4pin (AT/ATX mode by jumper setting)
Others 1 x Front Audio Header (Mic-in / Line-out), 1 x CMOS Jumper,

1 x panel power select header,1 x SATA power,

1 x FIO header, 1 x intrusion switch header, 1 x DMIC header, 1x buzzer header

1 x GPIO header
Mechanical and Environmental
Form Factor Mini ITX
Power Type 12V DC-IN
Dimension 170mm x 170mm
Operating Temperature ET : -20℃ ~ 70℃

UT : -40℃ ~ 85℃
Storage Temperature -40℃ ~ 85℃
Relative humidity 10% to 95%, non-condensing
Standard Compliance
Standard Compliance CE/FCC
OS
OS Support Windows® 10 64-bit

Linux(Support by request)
