Description
Specifications
| Module Compatibility | NVIDIA® Jetson Orin™ NX and Jetson Orin™ Nano |
|---|---|
| FPD-Link III Camera Inputs | • 4x FPD-Link III Camera Inputs (Connector: Quad Micro COAX) • Deserializers embedded on carrier board |
| Ethernet | Dual GbE (1 port from PCIe PHY controller) |
| Storage | 1x NVMe PCIe (M.2 2280 M-Key) |
| Display Output | 1x HDMI 2.0 (Type-A) |
| Wireless Expansion | 1x WiFi Module (M.2 2230 E-Key) 1x LTE Module (M.2 3042 B-Key) |
| USB | • 4x USB 3.0 (Type A) • 1x USB OTG (Type C) • 1x USB 3.0 + 2.0 port to M.2 B-Key • 1x USB 2.0 to M.2 E-Key |
| MISC/IO Connector | • 2x UART (1x Console, 1x 3.3V) • 1x RS-485 • 2x I2C, 1x SPI, 2x PWM OUT, 4x GPIO (2x IN, 2x OUT) • 2x 5V • 2x 3.3V • 2x Isolated Camera Trigger Input • 9x GND |
| Operating Temperature | -40°C to +80°C (-40°F to +176°F) |
| CAN | 1x Isolated CAN FD port (1Mbps max) |
| Power Input | +9V to +36V DC Power Input (Mini-Fit Jr. 4-Pin Locking) |
| Power – RTC Battery | Battery Holder for CR2032 |
| Mechanical Details | 104mm x 110mm x 34mm (4.09” x 4.33” x 1.34”) |
| Weight | 127g (Carrier Only) |
| Warranty and Support | 1 Year Warranty and Free Support |
Ordering Information

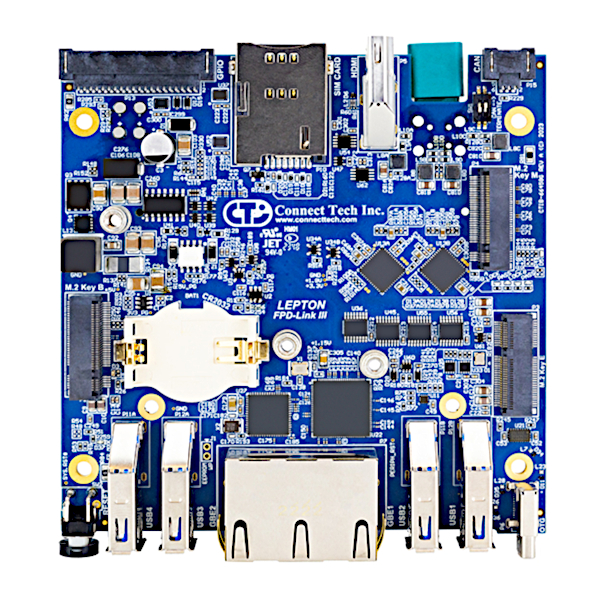

NGX022 Lepton FPD-Link III Carrier for NVIDIA® Jetson Orin™ NX
Cables/Accessories
CBG408 Lepton Power Input Cable
SFSD-20-28C-G-12.00-SR GPIO Cable
SFSD-03-28C-G-12.00-SR CAN Cable
MSG085 19V / 120W AC/DC Power Supply
CBG341 Quad FAKRA FPD-Link III Cable
