OXY5741A

9th Gen. Intel® Xeon®, Core™ i7 EBX SBC with PCIe/104 Rugged Extreme Temperture -40 to 85°C

Highlights:

  • 9th / 8th Gen Intel® Xeon® / Core™ processor with up to 6 Intel® Xeon® E-2276ME / Xeon® E-2276ML / Core™ i7-9850HE / Core™ i7-9850HL / Core™ i5-8400H
  • PCIe/104 stackable bus structure(Type 2)
  • FPE connector ( 1*PCIe x 16 or 2*PCIe x 8 or 1*PCIe x 8+2*PCIe x 4)
  • 4 x DDR4 SO-DIMM 2666MHz, up to 128GB, ECC for Xeon® SKU
  • Multi display. Triple simultaneous displays with 48-bit LVDS+DP
  • 1 x M.2 2280 M-key, 2 x Full size mPCIe, 1 x PCIe/104, 1 x FPE
  • Dual GbE, 4 x SATA III, 2 x RS232/422/485
  • 6 x USB 3.0, 4 x USB 2.0
  • Extended operating temp. -40 to 85°C

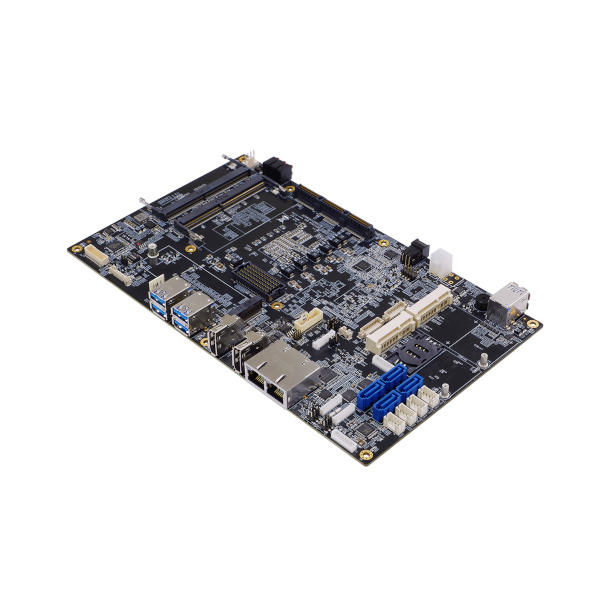

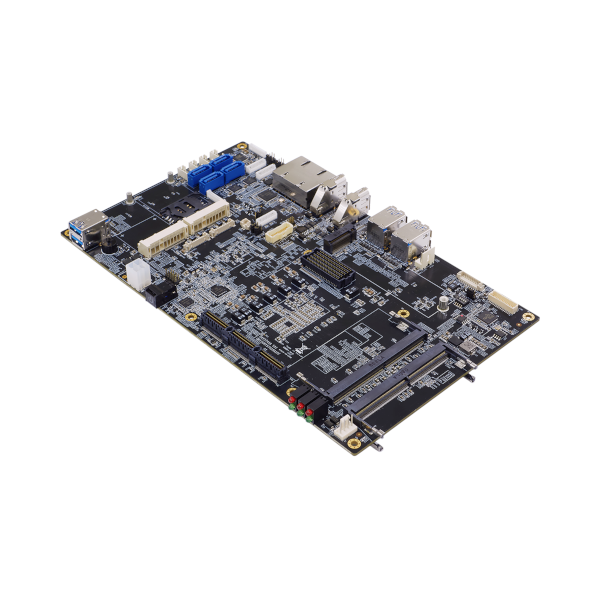

PERFECTRON, the leading pioneer in ruggedised and embedded systems, introduces the latest EBX SBC OXY5741A. The EBX SBC measures 243*146 mm, providing extraordinary computing performance under extreme environment.

It is powered by 9th / 8th Gen Intel® Xeon® / Core ™. Featuring Intel’s Xeon E-2276ME and ruggedised open-standard EBX architecture, PERFECTRON EBX series is built tentatively and triumphs on environmental testing. It still operates effectively under harsh environments ranging from -40 to 85°C so that it is a perfect solution for defence, transportation, and automation applications. More key functions such as stackable PCIe/104 expansion ability, flexible I/O, and NVMe Gen 3.0 PCIex4 for fast and large capacity storage, all contribute to this versatile architecture that can meet clients’ needs.

Key Features

  • 9th / 8th Gen Intel® Xeon® / Core ™ processor with up to 6 cores and 45W/25W TDP
  • EBX SBC Dedicates PCIe/104 Type 2
  • Dual channel DDR4-2666 SO-DIMM with up to 128GB *, ECC for Xeon SKU
  • Three simultaneous displays with 48 bit LVDS + HDMI + DP
  • USB 3.0, TPM 2.0 and NVMe / PCIe Gen3x4 SSD
  • Dual GbE, SATA III, RS-232/422/485
  • M.2 M-Key 2280 and Full size mPCIe(one support SIM card)
Categories: ,

Description

Specifications:

System
CPU Intel® Core™ i7-9850HE Processor

(6 Cores/12 Threads, 9M Cache, up to 4.40 GHz), 45W

Intel® Core™ i7-9850HL Processor

(6 Cores/12 Threads, 9M Cache, up to 4.10 GHz), 25W

Intel® Xeon® E-2276ME Processor

(6 Cores/12 Threads, 12M Cache, up to 4.50 GHz), 45W

Intel® Xeon® E-2276ML Processor

(6 Cores/12 Threads, 12M Cache, up to 4.20 GHz), 25W

Intel® Core™ i5-8400H Processor

(6 Cores/12 Threads, 8M Cache, up to 4.20 GHz), 45W
Memory Type 2 x 260 Pin DDR4 2400MHz SO-DIMM (up to 128GB, XEON®SKU support ECC)
Chipset CM246
BIOS Core AMI UEFI BIOS
BIOS Flash

Super I/O

 SPI Flash

ITE8786
TPM TPM 2.0(SLB9665)
iAMT iAMT 12.0
Watchdog 1-255 sec. or 1-255 min. software programmable and can be generate system reset
Expansion slot
M.2 1 x M.2(M-key,Type: 2280 , SATA/PCIe 3.0 x 4 NVMe)
Mini PCIe 2 x Full size (USB / PCIe and 1 x micro SIM Card)
FPE 1
PCIe/104 1 x TYPE 2
Display
Chipset Intel® UHD Graphics 630
LVDS Dual channel 24-bit LVDS, max resolution up to 1920 x 1080 @ 60Hz
Display Port

Multi-Display

 Up to 4096 x 2304 @ 60Hz

Triple simultaneous displays with 48-bit LVDS+DP
Ethernet
Chipset Intel® I210 & I219LM GbE LAN(10/100/1000 Mbps supported)
WOL Yes
Boot from LAN Yes for XPE
Audio
Codec ALC888S
Rear I/O
Display Port 2
USB 4 x USB 3.0
LAN 2
Front I/O
LED 6 (HDD, 2 x LAN ACT+LINK) RED/GREEN LED
PW Button 1
USB 2 x USB 3.0
Internal I/O
USB2.0 4
GPIO 1 (4in/4out)
SATAIII 4 (0,1,5 RAID)
SATA Power 4
DP 1
Audio 1 (Line-out /Mic-in)
Serial 2 (RS-232/422/485 autoflow control)
DC connector 1
LVDS Inverter 1
LVDS connector 1
LPC 1
CPU Fan 1
Front Panel Control Power LED, HD LED, Reset, Power Switch, Buzzer
Mechanical and Environmental
Form Factor EBX
Power Type DC-IN 12V
Power Consumption 180W
Dimension 146mm X 243mm
Operating Temperature UT : -40 to 85℃
Storage Temperature -40 to 85℃
Relative humidity 10% to 90%, non-condensing
Standard Compliance
Standard Compliance CE/FCC
OS
OS Support Windows®10 64-bit

Linux(Support by request)
