Description
Specifications:
| Dimensions | Length: 9.02 cm/3.55” Width: 9.6 cm/3.7″ |
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Bus | PCIe/104 Type 1 or Type 2 |
| System Requirements | PC/104-Express Stack +5V from PCIe/104 or PCI/104 Express stack |
Ordering information:

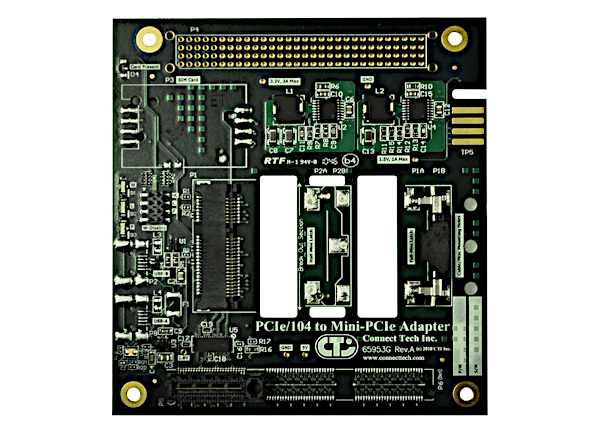

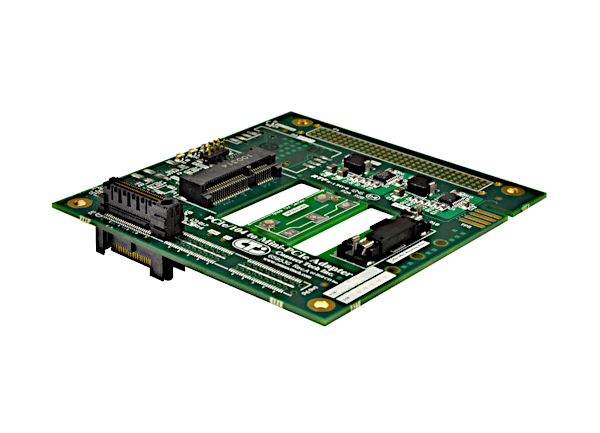

ADG028 PCIe/104 to Single Mini-PCIe Adapter; Bus Type: PCIe/104
ADG034 PCIe/104 to Single Mini-PCIe Adapter; Bus Type: PCIe/104; Uses 3 bank connector instead of single bank connector
ADG036 PCIe/104 to Single Mini-PCIe Adapter; Bus Type: PCIe/104; Uses 3 bank connector instead of single bank connector. With SIM socket, USB, and PCI-104 connectors installed.
ADG044 PCIe/104 to Dual Mini-PCIe Adapter; Bus Type: PCI/104-Express
ADG049 PCIe/104 to Dual Mini-PCIe Adapter; Bus Type: PCIe/104; Without PCI-104 pass-thru connector
*Not recommended for new designs
ADG050 PCIe/104 to Dual Mini-PCIe Adapter; Bus Type: PCI/104-Express; Includes 120 pin PCI-104 pass through connector
ADG051 PCIe/104 to Dual Mini-PCIe Adapter; Bus Type: PCIe/104
