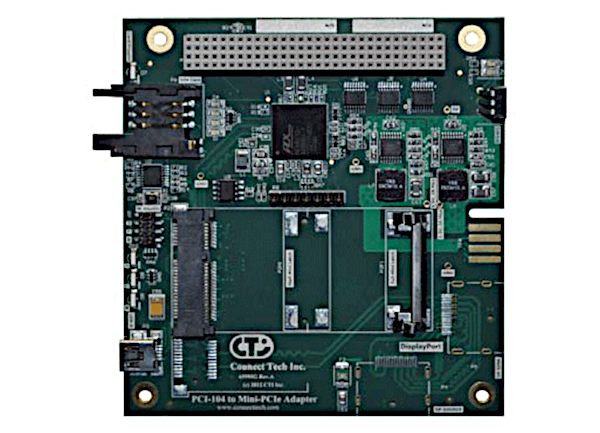

Connect Tech’s PCI-104 to Mini-PCIe Card Adapter easily enables integration of a Mini-PCIe (PCI Express Mini) card into a PCI-104 system.
The PCI-104 to Mini-PCIe Card Adapter is fully compatible with any Mini-PCIe peripheral, expanding the capabilities of an existing PCI-104 system. Add features such as WiFi, GPS, Bluetooth, storage and broadband communications.
The Mini-PCIe Card Adapter can also support optional Mini-PCIe features such as USB and SIM Card usage for WLAN applications.
| Power Consumption | +5V No modules installed 50mA.1 module using peak power up to 2200mA |
|---|---|
| Bus | PCI-104 |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimensions | 90.2mm x 96mm (3.55” x 3.78”) |
| System Interfaces | PCI-104 Stack |
ADG046 PCI-104 to Mini-PCIe Adapter
ADG047 PCI-104 to Display Mini-PCIe (DMC-Sink) Adapter
ADG048 PCI-104 to Display Mini-PCIe (DMC-Source) Adapter
