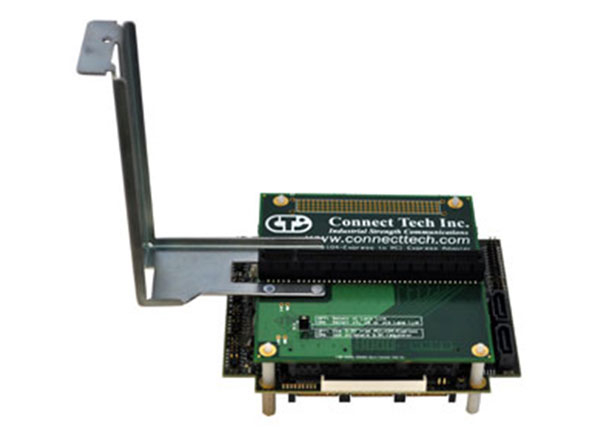

PCIe/104 to PCI Express Adapter Top Stacking Model

Highlights:

• PCIe/104 and PCI/104-Express compatible
• Industrial temperature range of -40°C to 85°C
• PCIe/104 156 pin bottom connector
• x16 lane vertical PCI Express card edge connector (fits any x1, x4, x8 or x16 lane cards)
• Custom support bracket to ensure PCIe card stability
• Dimensions: 3.55″ x 3.775″
• RoHS compliant

More information:

Connect Tech’s PCIe/104 to PCI Express Top Stacking adapter allows users to install any x1, x4, x8 or x16 lane PCI Express card into a PCIe/104 or PCI/104-Express stack up configuration.

This convenient adapter board enables the testing and development for standard PCI Express cards in the PCIe/104 or PCI/104-Express environment.

Standard Usage

This adapter supports any x1, x4, x8 or x16 lane PCI Express add-in card. Simply mount the add-in card to the adapter and install the adapter on the top of a PCIe/104 or PCI/104-Express stack.

Once everything is connected, you may begin using the add-in card just as you would any other PCI/104-Express add-in card. No additional configuration is required.

Click here to view a list of compatible CPU boards with this adapter.
