Description
Specifications:
| GPU Module Options | NVIDIA® Jetson Orin™ Nano, NVIDIA® Jetson Orin™ NX |
|---|---|
| Network | 1x Gigabit Ethernet (RJ45), 2x Gigabit Ethernet (M12 X-Code) |
| Wireless Expansion | 1x WiFi Module (M.2 2230 E-KEY) 1x 5G Module (M.2 3042/3052 B-KEY) w/ nano SIM Card Slot 5x FAKRA SMB Plug C/D/I-codes for antenna connections |
| Display | 1x HDMI |
| Camera Inputs | 4x FAKRA SMB Plug Z-code, GMSL cameras |
| USB | 1x USB OTG (Micro-AB), 3x USB 3.1 Ports (Type-C) |
| UART | 1x USB based Debug UART (USB micro AB connector) |
| Storage | 1x M.2 Key-M (NVMe) slot (4-lane PCIe Gen 3/4) |
| CAN | 2x CAN FD Isolated Ports (M12 A-Code) |
| GPIO | 1x 12V output (100mA max, isolated M-12, D-Code), 2x 3.3V input (12V tolerant, Isolated M-12, D-Code) |
| Fan | 2x 12V BLDC Fans with Tachometer and PWM speed control |
| Other | 1x CR2032 RTC battery holder 1x RGB status LED 1x Back-up power button 1x Reset/Forced-Recovery button 1x CAN mode/self-test rotary switch |
| Input Power | +18-48V DC Wide Input Power (M12 B-Code) |
| Dimensions | 285mm x 150mm x 70mm (11.22inch x 5.91inch x 2.76inch) |
| Weight | 2.5kg (5.5 lbs) |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) (14.4CFM is needed to operate higher than 35°C or 95°F) |
Ordering Information

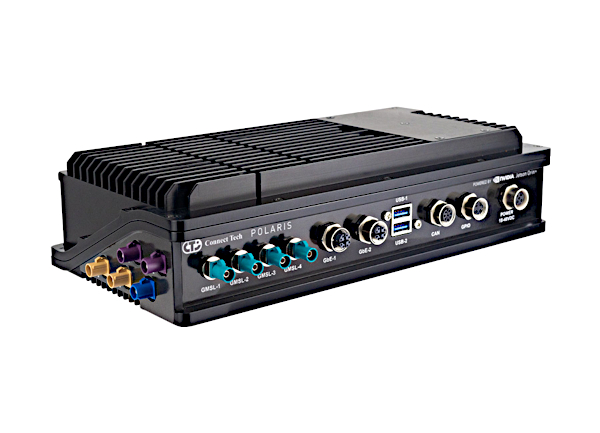

ESG604 Polaris Embedded Active System with NVIDIA Jetson Orin™ NX 16GB
ESG608 Polaris Embedded Passive System with NVIDIA Jetson Orin™ NX 16GB
Part Number Cooling WiFi/Bluetooth Option Storage Option LTE Option
ESG604-1C Active Cooling N/A 2TB NVMe SSD N/A
ESG604-1E Active Cooling WiFi6/BT Module 2TB NVMe SSD N/A
ESG604-22 Active Cooling N/A 2TB NVMe SSD Quectel 5G Global LTE
ESG604-24 Active Cooling WiFi6/BT Module 2TB NVMe SSD Quectel 5G Global LTE
ESG608-1C Passive Cooling N/A 2TB NVMe SSD N/A
ESG608-1E Passive Cooling WiFi6/BT Module 2TB NVMe SSD N/A
ESG608-22 Passive Cooling N/A 2TB NVMe SSD Quectel 5G Global LTE
ESG608-24 Passive Cooling WiFi6/BT Module 2TB NVMe SSD Quectel 5G Global LTE
Cables/Accessories
MSG110 Polaris Power Cable Assembly
