Description
Dane techniczne:
| Ethernet | 2x 1000BASE-T Ethernet Port • 1x Port sourced directly from NX • 1x Port sourced from i210 |
|---|---|
| MIPI Camera Inputs | Up to: • 2x 4-lane MIPI FRAMOS Sensor Modules; or • 4x 2-lane MIPI FRAMOS Sensor Modules |
| Display Output | 1x HDMI 2.0 |
| Storage | 1x M.2 M-Key (2280) NVMe PCIe x4 (Gen 3) |
| M.2 E-Key | 1x 2230 E-Key Expansion for WiFi/Bluetooth 1x PCIe x1 + USB 2.0 |
| USB | 1x USB 3.1 Gen 2 w/ OTG capability (Type C) 1x USB 2.0 (Type A) |
| Misc Interfaces | 3x 3.3V TTL UARTs (1x CONSOLE) 8 GPIOs 3.3V TTL (2x PWM Capable) 2x I2C 3.3V 1x CAN 2.0b 2x SPI 2x 3.3V 2x 5V 8x GND |
| Input Power / Misc Power Details | +9V to +36V Input Voltage Range • Auto-ON operation by default |
| RTC Battery | 1x RTC Battery External Connector |
| FAN | 1x FAN w/ PWM Control |
| Operating Temperature | -40°C to +85°C ( -40°F to +185°F) |
| Weight | 80g (2.82oz) |
| Dimensions | 90mm x 75mm (3.54” x 2.95”) |
| Warranty and Support | 1 Year Warranty and Free Support |
Ordering Information

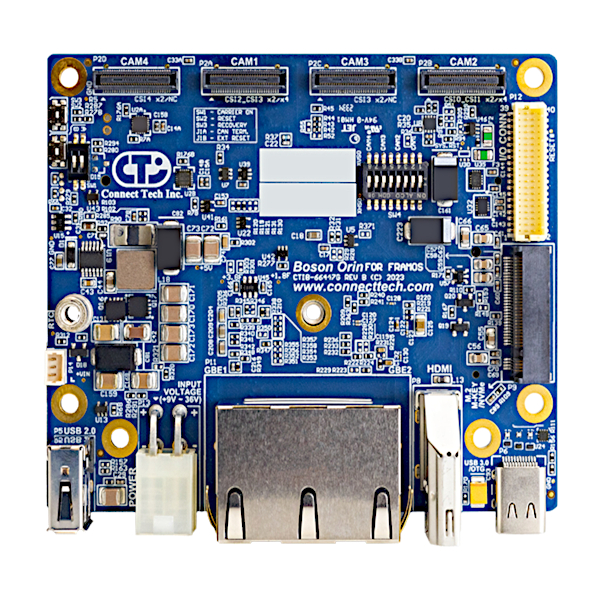

NGX020 Boson for FRAMOS Carrier Board for Orin NX & Orin Nano
Cables/Accessories
CBG408 Power Input Cable
CBG125 Misc. I/O Cable – DF20A 40 Pin, unterminated
MSG085 AC/DC Power Supply
