Description
Dane techniczne:
| • 24x NVIDIA® Jetson Orin™ NX • GPU: 1024-core CUDA GPU with 32 Tensor Cores, 3.7 TFLOPS (FP16), 100 TOPs (INT8) • CPU: 8-core Cortex Arm v8.2 CPU, 2MB L2 + 4MB L3 • Memory: 16 GB 128-bit LPDDR5, 102.4GB/s • Storage: Supports External Storage (NVMe) via x4 PCIe |
|
| Out-of-band Management Module | • ARM based OOBM • Enabling Serial console access, power status monitoring, and power control (ON/OFF) to all 24x Orin NX modules • OOBM accessible via Ethernet or via its own integrated USB-to-Serial console |

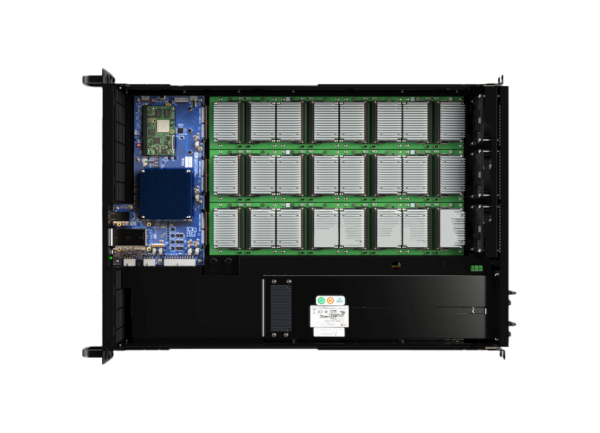

| Processor Module Carriers | • Each module carrier will allow up to 8x Orin NX modules to be installed • 3x module carriers can be installed in the system for a total of 24 modules |
| Internal Embedded Ethernet Switch | • Vitesse/Microsemi SparX-5i VSC7558TSN-V/5CC Managed Ethernet Switch Engine (XDG205) • CPU: 1 GHz VCore • Memory: 8Gb DDR4 SDRAM • Storage: 1Gbit Serial NOR Flash • Multi 10G uplinks, with 12x 1G downstream • Complete TSN feature set (Time-Sensitive Networking) |
| Internal Array Communication | • 24x Gigabit Ethernet / 1000BASE-T / IEEE 802.3ab channels • All Orin NX modules can communicate to all other Orin NX modules |

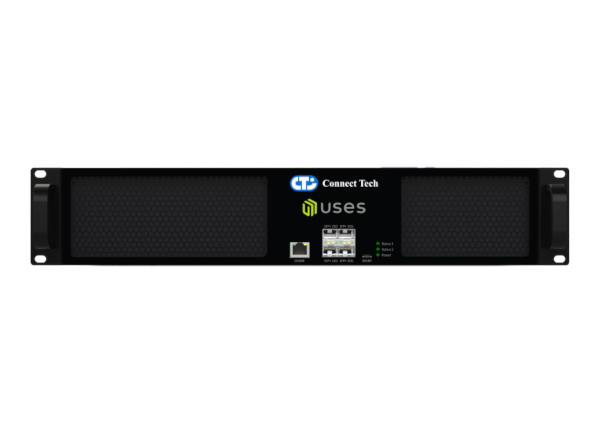

| External Uplink Connections | • 4x SFP+ 10G uplink |
| Misc / Additional IO | 1x 1GbE OOB management port via RJ-45; 1x USB UART management port; status LEDs |
| Input Power | 100~240 VAC (dual redundant) with 1000W output each |
| Internal Storage | Each Orin NX module has its own M.2 NVMe interface |
| Operating Temperature | 0°C to +50°C (+32°F to +122°F) |

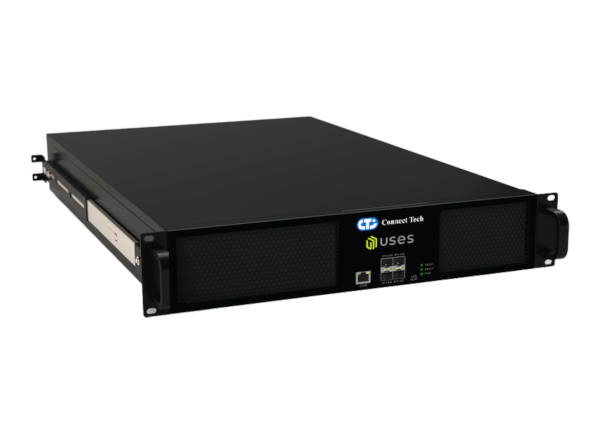

| Dimensions | Standard 2U rackmount height (3.5 inch / 88.9mm), 25 inch / 635mm depth |
Ordering Information
UNGX2U-07 Orin NX Inference Server – 2U Array, with 24x NVIDIA Jetson Orin NX 16GB, 24x 1TB NVMe SSD
UNGX2U-08 Orin NX Inference Server – 2U Array, with 16x NVIDIA Jetson Orin NX 16GB, 16x 1TB NVMe SSD
UNGX2U-09 Orin NX Inference Server – 2U Array, with 8x NVIDIA Jetson Orin NX 16GB, 8x 1TB NVMe SSD
UNGX2U-10 Orin NX Inference Server – 2U Array, with 24x NVIDIA Jetson Orin NX 16GB, 24x 2TB NVMe SSD
UNGX2U-11 Orin NX Inference Server – 2U Array, with 16x NVIDIA Jetson Orin NX 16GB, 16x 2TB NVMe SSD
UNGX2U-12 Orin NX Inference Server – 2U Array, with 8x NVIDIA Jetson Orin NX 16GB, 8x 2TB NVMe SSD
