Opis
Dane techniczne:
| Operating Temp. | |
|---|---|
| ET : -20°C to 70°C
UT : -40°C to 85°C |
|
| System | |
| CPU Type | 9th & 8th Gen Intel® Coffee Lake LGA1151 Socket Processor,
Core i9-9900T (8core/35W) Core i7-8700K (6core /95W) Core i7-9700TE (8core/35W) Core i5-9500TE (6core /35W) |
| Chipset | Intel Q370 (Support RAID 0 / 1) support vPro / Intel H310 |
| Memory Type | DDR4 2666MHz, 2 x 260-pin SO-DIMM, Max. 32GB (Non-ECC) |
| BIOS | AMI BIOS, 256 Mbit SPI |
| Watchdog | 1~255 Steps by Software |
| Graphics | Intel HD Graphics |
| Ethernet | Intel I219-LM Giga LAN + Intel I210-AT Giga LAN |
| Audio | Realtek ALC662 |
| Super I/O | Nuvoton NCT6116D |
| TPM | TPM Header (option TPM-SPI-NPCT750) |
| H / W Monitor | Temperature Monitor, Voltage Monitor, Fan Monitor |
| Form Factor | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| Expansion Slot | |
| Expansion Slot | 1 x PCIe X16 slot
1 x Mini PCIe Full size (SATA, USB, PCIe) 1 x M.2 2260 / 2280 M key (PCIe, SATA) * H310 only supports M.2 SATA SSD 1 x M.2 2230 E key (PCIe, USB 2.0) |
| Display | |
| HDMI | Up to 4K (4096 x 2160) @30 Hz |
| DisplayPort | Up to 4K (4096 x 2304) @60 Hz |
| 2nd DisplayPort | Up to 4K (4096 x 2304) @60 Hz (Q370 ONLY) |
| LVDS | Up to 1920 x 1200 @60 Hz |

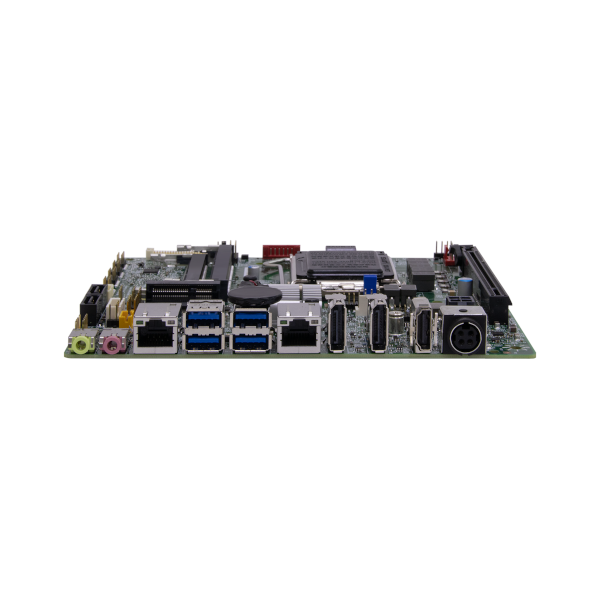

| Rear I/O | |
| Display I/O | 1 x HDMI 1.4, 2 x DisplayPort 1.2 |
| Audio I/O | 1 x Mic-in ,1 x Line-out |
| USB | 4 x USB 3.1 Gen. 2 (10Gb/S)(Q370) / 4 x USB 3.0 (H310) |
| LAN | 2 x RJ-45 |
| Others | 1 x DIN 4-pin DC Jack |
| Internal I/O | |
| SATA | 2 x SATAIII |
| USB | 5 x USB 2.0 (Q370) , 4 x USB 2.0 (H310) |
| Display I/O | 1 x LVDS (Optional eDP SKU available)
1 x Backlight Connector |
| Audio I/O | 1 x Speaker 2W |
| Serial Port | 4 x RS232 (two supports RS232/422/485 select by BIOS) |
| GPIO | 1 x MiAPI Header (Programmable) |
| Fan | 1 x 4-pin CPU Fan Connector, 1 x 4-pin System Fan Connector |
| Power | 1 x ATX 4-pin Power Connector, 1 x AT / ATX Mode Select Jumper |
| Others | 1 x Front Audio Header (Mic-in / Line-out), 1 x CMOS Jumper, 1 x panel power select header, 1 x backlight power select header, 1x buzzer header |
| Mechanical and Environment | |
| Power Input | DC-in 12V DIN 4-pin connector / ATX 4pin 12V
*optional 12V-24V SKU |
| Operating Temperature | ET : -20°C to 70°C
UT : -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10% ~ 95% R/H, non-condensing |
| Certification | CE & FCC Class B |
