Description
Dane techniczne:
| Form Factor | M.2 2230 Key A+E |
|---|---|
| Ports | 1x 10/100/1000BASE-T |
| Controller | Intel® Ethernet Controller I210-AT |
| Host Interface Bus | x1 PCIe v2.1, SMBus |
| Dimensions | 22mm x 30mm (M.2 Type-2230-D3-A-E)* (0.87” x 1.18”) *exceeds M.2 specification max topside height |
| Cable (Optional, not included) | CBG383 (RJ-45 Female, 8-pin Picoblade) |
| LEDs | Activity, Link, Power |
| Operating Temperature* | -40°C to +85°C (-40°F to 185°F) *A minimum air-flow rate of 125CFM is recommended to operate reliably at ambient temperatures over 65°C |
| Weight | 3g (0.11oz) |
| Warranty and Support | 2 Year Warranty and Free Technical Support |
Ordering information:

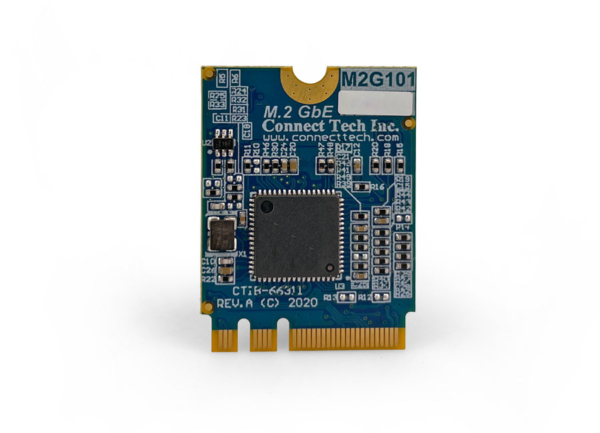

M2G101 M.2 GbE Connector
Cables/Accessories
CBG383 RJ-45 Female, 8-pin Picoblade
