Dane techniczne:
Main |
|
|---|---|
| Model Name | MT324 |
| Max Input Resolution | 1920×1080@60/50fps |
| Recording Mode | Software Compression, Real-Time Mode |
| Interface | Mini PCIe (PCIe x 1) |

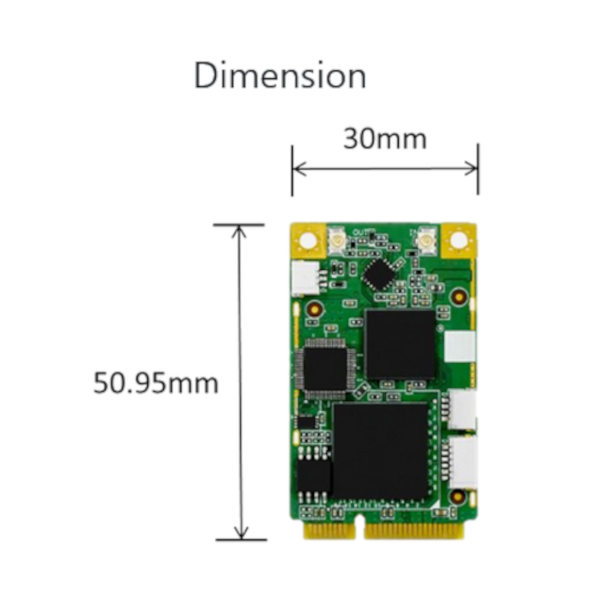

| Dimension | 30 x 50.95(mm) |
| Feature | Multi Instances
Multi Devices |
Video |
|
| Input | 1 x SDI |
| Output | 1 x SDI (Loop Through) |
| Color Pormat | Capture/Preview
4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010 |
| Video Processing | Video, Audio and VANC Capture
Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolution | 3G-SDI :
1920×1080p@60/50fps HD-SDI : 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI : 720×480i@60fps 720×576i@50fps |
Audio |
|
| Input | 1×Stereo Embedded Audio
Audio L/R ( Through Wafer Connector ) |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| OS Support | |
| OS Support | Windows 7/Windows 8/Windows 8.1/Windows 10/Windows 11
Linux 2.6.14 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
