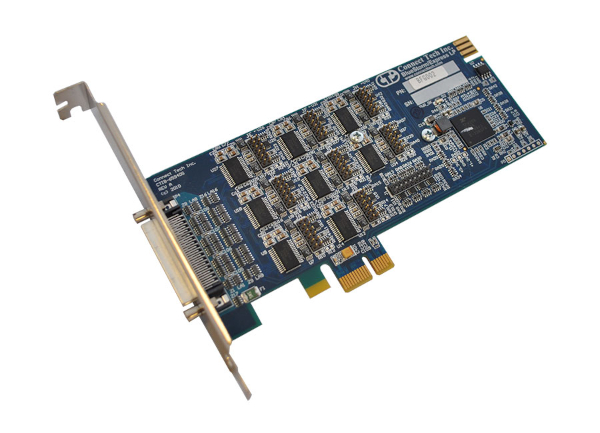

PCI Express: BlueStorm/Express LP

Najważniejsze cechy:

  • Elastyczność: Karta PCI Express x1 Lane jest kompatybilna z dowolnym dostępnym gniazdem PCI Express x1, x4, x8 lub x16.
  • Prędkość: Dwukierunkowa komunikacja danych z prędkością do 1,8432 Mb/s (RS-422/485) i 921,8 Kb/s (RS-232)
  • Wydajność: Każdy port ma do 64 bajtów buforów FIFO do transmisji i odbioru, automatyczną kontrolę przepływu sprzętowego i programowego
  • Ochrona: Zgodność z normą IEC 61000-4 dla wszystkich sygnałów, wszystkich portów

Więcej informacji:

Rodzina BlueStorm/Express oferuje niezawodny, szybki transfer danych dla Twojego systemu PCI Express.

BlueStorm/Express LP to karta szeregowa PCI Express x1 Lane o niskim profilu, oferująca osiem portów łączności RS-232/422/485, kompatybilna z dowolnym gniazdem PCI Express. Dwukierunkowa prędkość transmisji danych do 7,8 Mb/s (RS-422/485) zapewnia niezawodną i ekonomiczną komunikację aplikacji do pozyskiwania danych, automatyzacji biura, POS, samoobsługowego kiosku lub naukowych/instrumentacyjnych.

BlueStorm/Express LP jest kompatybilny z gniazdami PCI Express x1, x4, x8 i x16. Modernizacja systemu PCI do wydajniejszego PCI Express wymaga jedynie zmiany sprzętu – nowy system PCI Express jest wstecznie kompatybilny z oprogramowaniem PCI.

Wszystkie karty PCI Express Connect Tech posiadają certyfikat FCC i są oznaczone znakiem CE.

Opis

Dane techniczne:

Ports 8 ports
Electrical Interfaces Hardware selectable RS-232/422/485
Connectors DB-25 cables, DB-9 cables, DB-9 external I/O box
Control Signals RS-232: TxD, RxD, RTS, CTS, RI, DTR, DSR, DCD, RS-422/485: TxD+/-, RxD+/-, RTS+/-, CTS+/-
Baud Rate RS-232: 50 bps to 1 Mbps, RS-422/485: 50 bps to 7.8 Mbps
Interrupts Assigned by Plug and Play resources
Memory Addresses Assigned by Plug and Play resources
UART Type PCIe octal UART with up to 254 bytes transmit and receive FIFO buffers for each port
Dimensions Length: 14.699 cm/5.787” Height: 6.891 cm/2.713″
Operating Temperature 0°C to +70°C (+32°F to +158°F)
Storage Temperature -40°C to +105°C (-40°F to +221°F)
Humidity 5 to 95% non-condensing
Bus PCI Express
Operating System Linux, QNX, SCO Unix, Solaris, Windows
Surge Suppression IEC 1000-4 compatible on all signals, all ports
System Interfaces One PCI Express x1 card edge
Power Requirements +3.3V DC @ 675mA (max), 100mA (min)
Regulatory Approvals FCC Class A, ICES-003 Class A

Ordering information:

BFG001            BlueStorm/Express LP, 8 ports, 921600 / 1843200 bps
*Note: This product has been replaced with the BFG002 (1000000 / 7812500 bps)
BFG001-01      BlueStorm/Express LP, 8 ports with CBG009 cable, 921600 / 1843200 bps
*Note: This product has been replaced with the BFG002-01 (1000000 / 7812500 bps)
BFG002           BlueStorm/Express LP, 8 ports. Designed and built for installation in a low profile chassis.
BFG002-01     BlueStorm/Express LP, 8 ports with CBG009 cable. Designed and built for installation in a low profile chassis.
BFG002-02    BlueStorm/Express LP, 8 ports with CBG026 cable. Designed and built for installation in a low profile chassis.
BFG002-04    BlueStorm/Express LP, 8 ports with CBG033 cable. Designed and built for installation in a low profile chassis.
BFG005           BlueStorm/Express LP, 8 ports. Designed and built for installation in a standard height chassis.
BFG005-02    BlueStorm/Express LP, 8 ports with CBG026 cable. Designed and built for installation in a standard height chassis.
BFG005-03    BlueStorm/Express LP, 8 ports with IOBG08BLV1 I/O box. Designed and built for installation in a standard height chassis.

Cables/Accessories
CBG009                 8x DB-9 Male
CBG026                 8x DB-25 Male, 0.3m length
IOBG08DB9V1    8x DB-9 Male I/O Box, Provides Universal DB9M, 1.220 length
CBG033                8x DB-9 Male, 1.220 length
IOBG08BLV1       8x DB-9 Male I/O Box, 1.220m length
