Description
Dane techniczne:
| Ethernet | 1x 1000BASE-T Ports (Connector: Positive Locking Pin Headers) |
|---|---|
| USB | 2 x USB 3.1 (Gen 1) 1x USB 2.0 Programming Port (HD pin headers) |
| MIPI Cameras | 2x 4-lane MIPI CSI-2 – 22-pin FPC Connector |
| Misc Interfaces | 1x 3.3VTTL UART (CONSOLE) 2x RS-232 Serial Ports 4x GPIO (I/O Header), 2x PWM Capable 1x 3.3V I2C 1x 3.3V SPI Power Output 3.3V, 5V (Max 500mA Each) |
| Storage | 1x 2242/2230 NVMe (M-Key) |
| Display Output | None (Headless Operation only) |
| FAN | 1x 4-pin Fan Connector (5V, 1×4 Picoblade) |
| Expansion | 1x M.2 E-Key for WiFi/BT |
| Power Input | Wide Power Input: +10V to +60V DC (+12V to +48V DC Nom.) |
| Power – RTC Battery | 3-Pin RTC Battery Connector |
| Operating Temperature | -25°C to +85°C (-13°F x 185°F) |
| Dimensions | 87.6mm x 58.8mm (3.45” x 2.31”) |
| Weight | 45g |
| Warranty and Support | 1 Year Warranty and Free Support |
Ordering Information

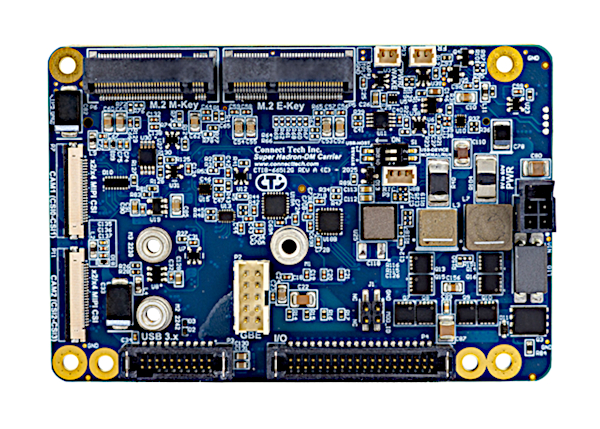

NGX027 Super Hadron-DM Carrier for NVIDIA® Jetson Orin™ NX
Cables/Accessories
XBG023 USB 3.0 Breakout for Hadron Carrier
CBG706 Molex 4-pin Nano-Fit 2×2
CBG117 10-pin MiniTek w/Latch, RJ-45 Panel Mount
CBG136 Molex 3 position 1.25mm PicoBlade Connector
CBG615 20-pin Tiger-Eye to 2x USB 2.0 Type-A Female
CBG629 40-pin Tiger-Eye to Unterminated FlyingLeads
CBG686 20-pin Tiger-Eye to 2x USB 3.0 Type-A Female (200mm)
